SZ270R8 mini Server PC

Regular price
$799.00
Sale price
$799.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

IMPRESSIVE PERFORMANCE WITH KABY LAKE PLATFORM

    • Stylish aluminum chassis and a size three times smaller than a full tower PC
    • Supports large format dual slot graphic cards and up to four 3.5" hard drives
    • Intel® Z270 chipset drives Kaby Lake LGA 1151 processors to deliver outstanding speed and performance with support for Intel® Rapid Storage Technology


POWERFUL YET SMALL

Compared to the average PC tower, the SZ270R8 packs power in a 14.2 liter aluminum chassis.


SUPPORTS INTEL® 7TH GENERATION PROCESSORS

The SZ270R8 supports both Intel® 6th Generation (Sky Lake) and Intel® 7th Generation (Kaby Lake) Core i3/i5/i7, Pentium®, and Celeron® 95W processors. Built-in DirectX 12 compatibility with Intel® HD graphics significantly increases CPU or GPU performance.



SUPPORTS LARGE SIZE HIGH-END GRAPHIC CARDS

An all-new mechanism supports the installation of graphic cards up to 11″ (L) x 1.5″ (W) x 4.7″ (H), making it easier than before to install a separate graphics card or other expansion cards.



INTEGRATED COOLING TECHNOLOGY

Our ICE 2 heat pipe technology uses convection cooling to dissipate heat away from the CPU. The tubes are filled with distilled water to effectively channel heat and provide highly efficient processor and chassis cooling.



INTEL® OPTANE™
MEMORY TECHNOLOGY READY

With a 7th Generation Intel® Core processor, the latest Intel® Optane™ Memory technology accelerates the system to deliver amazing speed when swapping to an Intel® Optane™ SSD.


CONFIGURABILITY

Visit our store at shuttleonlinestore.com to view configuration options or contact us at store@us.shuttle.com if you need further assistance.

We are open Monday through Friday, 9AM to 6PM (US Pacific Time).
If you need OEM services like chassis redesign, custom BIOS, and more, please contact our team at solutions@us.shuttle.com.


 Technical Specs

PROCESSOR

Supports Intel® Kaby Lake/Skylake, Core i3/i5/i7, 95W LGA 1151 CPU

MEMORY

(4) DDR4 2133/2400 MHz, Supports dual channel up to 64GB (16GB x 4)

VIDEO GRAPHICS

Integrated in CPU

VIDEO OUTPUT

HDMI + DisplayPort, Supports three independent displays

AUDIO

Realtek ALC662, 5.1 Channel HD audio

ETHERNET

Intel Chip i211 x 2
10/100/1000 Mb/s

Supports Wake-ON-LAN function

STORAGE INTERFACE

SATA 6 GB/s

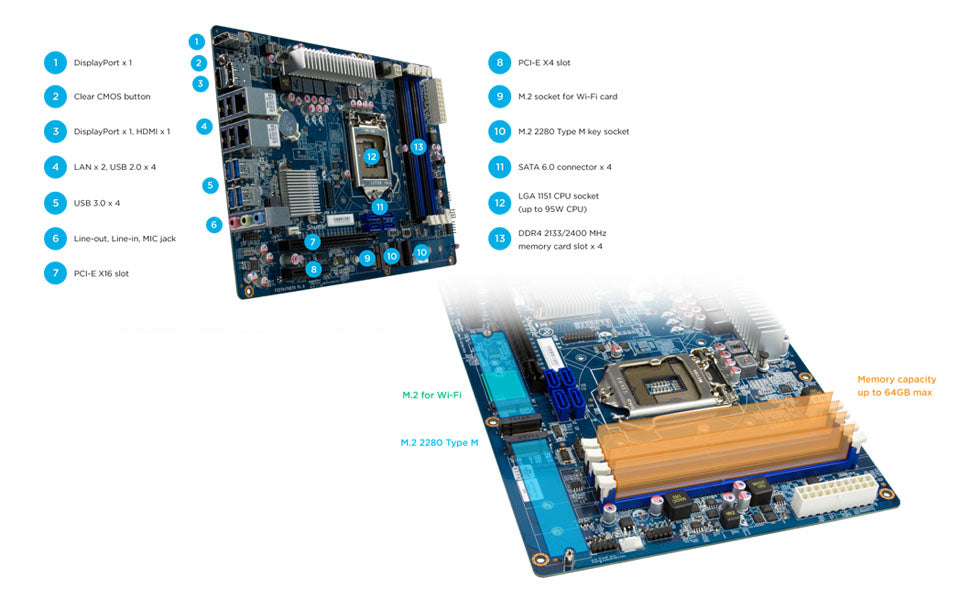

ONBOARD CONNECTORS

(2) 4 pin fan connector
(4) SATA 6.0 connectors
(1) ATX main power (2x10)
(1) ATX 12V power (2x2)

(1) RS232 header
(1) Front USB 3.0 header
(1) Front audio header
(1) 2x5 pin USB header

FRONT PANEL

(1) Power Button
(1) Power LED
(1) HDD LED

(2) USB 3.0
(1) External microphone jack 1/8"
(1) External headphone jack 1/8"

BACK PANEL

(1) HDMI
(2) DisplayPort
(4) USB 2.0
(4) USB 3.0
(3) Antenna holes
(1) Kensington Lock

(1) Line-in jack 1/8"
(1) Line out jack 1/8"
(1) Audio MIC in
(1) CMOS Clear Button
(2) LAN ports

DRIVE BAYS

(4) 3.5" HDD bay
Supports up to 8 x 2.5" HDD using 4 x PHD3 HDD rack when the system has an extra SATA or RAID card

DIMENSIONS

13(L) x 8.5(W) x 7.79(H) inches

POWER

Input: 100 - 240V AC
Supports 80 PLUS Silver

80 PLUS 500W power supply

ACCESSORIES

Quick Guide
CPU Thermal Grease
SATA cable x 4 (for HDD)

Driver DVD
Power Cord
Screw Package

EXPANSION SLOT

(1) PCI-E X16 slot
(1) PCI-E X4 slot

(1) M.2 MAX to 2230 Type A, E key socket
(2) M.2 MAX to 2280 Type M, key socket

OS SUPPORT

Windows 7 & Embedded Series OS*, Windows 10 & Embedded Series OS, Linux

*Only supported by Skylake processors
